| Horsepower | Frame | A | D | BA | 2F | |

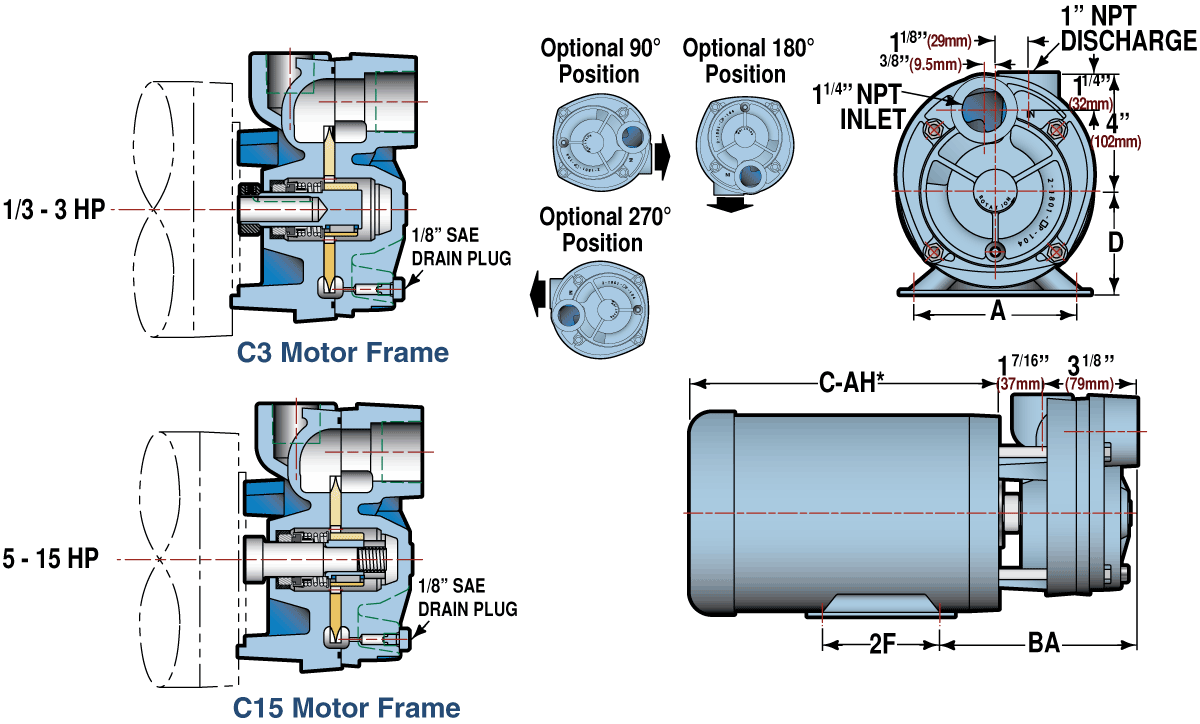

| T51 C3 & C15 Motor Frames |
1/3 ~ 3 ODP, TEFC, & EXP** | 56C | 4 7/8 124mm |
3 1/2 89mm |
7 7/16 189mm |
3 76mm |
| 3 EXP | 182TCZ | 7 1/2 191mm |
4 1/2 114mm |
8 7/16 214mm |
4 1/2 114mm |
|
| 5 ODP & TEFC, 7 1/2 ODP | 56Y | 4 7/8 124mm |
3 1/2 89mm |
7 9/16 192mm |
3 76mm |
|
| 5 EXP, 7 1/2 TEFC | 184TCZ | 7 1/2 191mm |
4 1/2 114mm |
8 1/4 210mm |
5 1/2 140mm |
|
| 7 1/2 EXP & 10 TEFC | 213TCZ | 9 7/8 251mm |
5 1/4 133mm |
8 1/4 210mm |
5 1/2 140mm |
|

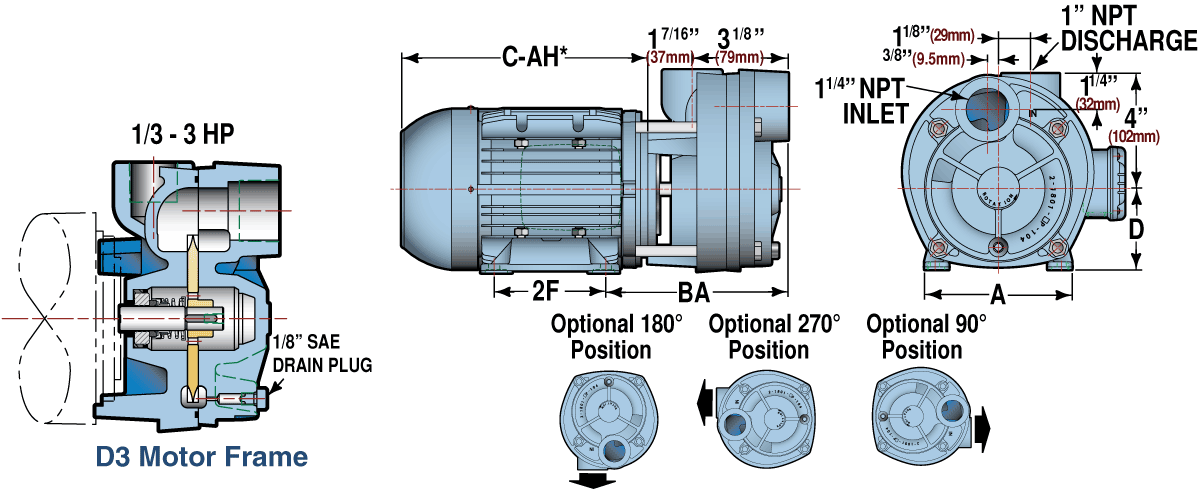

| E51 - 3-phase D3 Motor Frame |
1/2 ~ 3/4 TEFC | 71 | 4 7/16 113mm |
2 13/16 71mm |
6 5/16 160mm |
3 9/16 90mm |
| 1 ~ 1 1/2 TEFC | 80 | 4 15/16 125mm |
3 1/8 79mm |
6 1/2 165mm |
3 15/16 100mm |
|
| 2 ~ 3 TEFC | 90 | 5 1/2 140mm |
3 9/16 90mm |
6 3/4 171mm |
4 15/16 125mm |
|
| E51 - 1-phase D3 Motor Frame |
>1/3 ~ 1 1/2 ODP | 48 | 4 1/2 114mm |
3 76mm |
7 1/4 184mm |
2 9/16 65mm |
| *C-AH Dimensions -Refer to Motor Support Pages **Excludes 3 HP EXP |
||||||
Zoom
Zoom

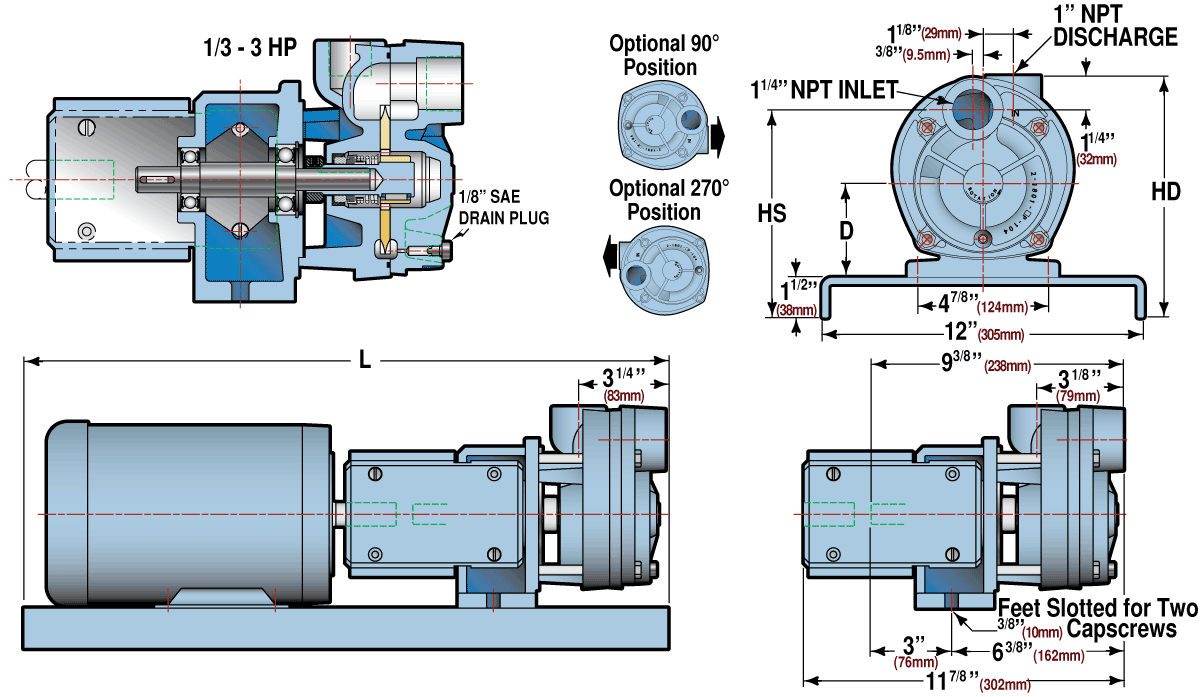

| Frame* | D | HD | HS | L(P3) | L(P15) |
| 56 | 3 1/2 89mm |
9 229mm |
7 3/4 197mm |
24 610mm |
|
| 143T | 3 1/2 89mm |
9 229mm |
7 3/4 197mm |
24 610mm |
28 711mm |
| 145T | 3 1/2 89mm |
9 229mm |
7 3/4 197mm |
24 610mm |
28 711mm |
| 182T | 4 1/2 114mm |
10 254mm |
8 3/4 222mm |
26 660mm |
30 762mm |
| 184T | 4 1/2 114mm |
10 254mm |
8 3/4 222mm |
26 660mm |
30 762mm |
| 213T | 5 1/4 133mm |
10 3/4 273mm |
9 1/2 241mm |
33 838mm |
|
| 215T | 5 1/4 133mm |
10 3/4 273mm |
9 1/2 241mm |
33 838mm |
|
| Note: All Dimensions in inches Refer to Motor Support Pages for frame size and other dimensional data. |
|||||
Zoom
Zoom

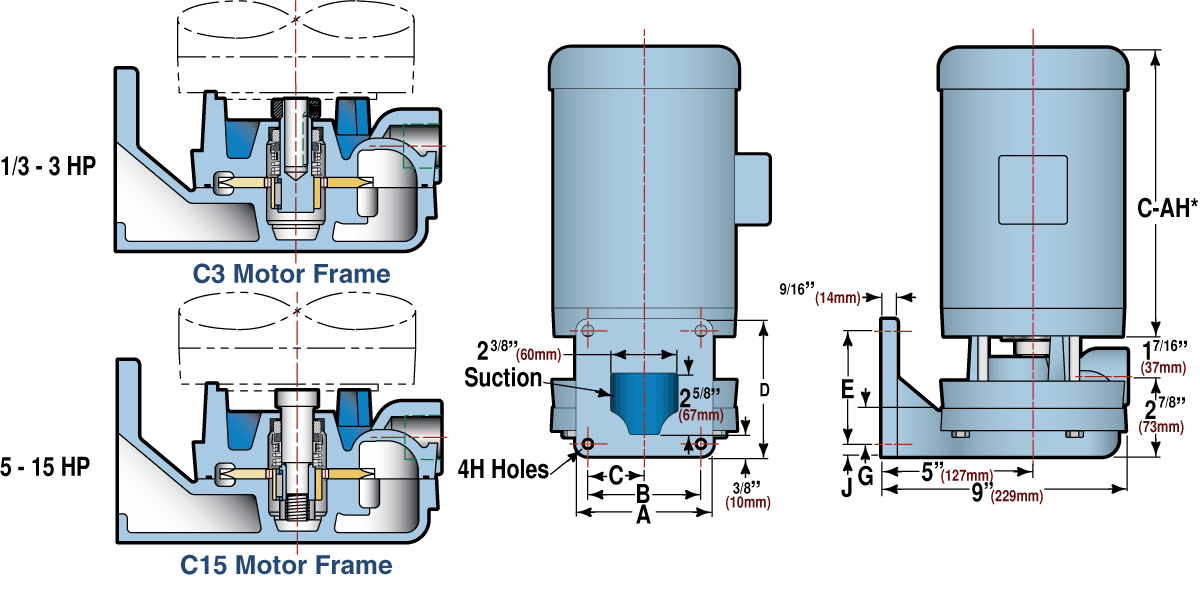

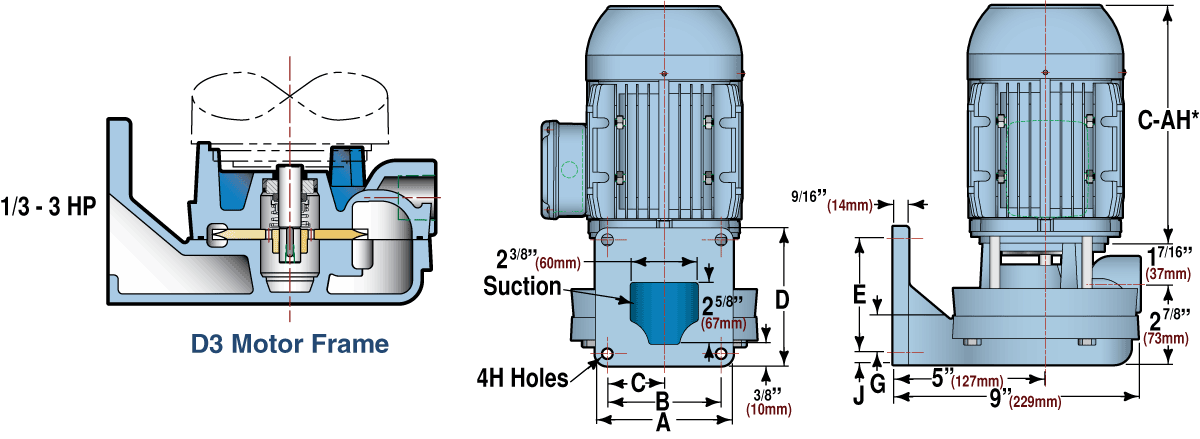

| Flange Style |
A |
B |
C |
D |
E |
G |
H |
J |
| AU - Aurora (7 1/2 x 4 1/2) | 7 1/2 191mm |
6 1/4 159mm |
3 1/8 79mm |
4 1/2 114mm |
3 1/4 83mm |
1 1/8 29mm |
9/16 14mm |
5/8 16mm |
| DB - Dunham-Bush (Mepco) (4 1/2 x 4 1/2) | 4 1/2 114mm |
3.270 83mm |
1.635 42mm |
4.5 114mm |
3.25 83mm |
1.135 29mm |
1/2 13mm |
5/8 16mm |
| FE - Federal (7 3/4 x 4 3/4) | 7 1/2 191mm |
6 1/4 159mm |
3 1/8 79mm |
4 1/2 114mm |
3 1/2 89mm |
1 1/4 32mm |
9/16 14mm |
1/2 13mm |
| PA - Paco (6 1/2 x 3 3/4) | 6 1/2 165mm |
5 1/2 140mm |
2 3/4 70mm |
3 3/4 95mm |
2 5/8 67mm |
1 1/8 29mm |
9/16 14mm |
5/8 16mm |
| SH - Shippensburg (Shipco) & BU - Burks (6 1/4 x 4) | 6 1/4 159mm |
5 127mm |
2 1/2 64mm |
4 102mm |
2 3/4 70mm |
1 1/8 29mm |
9/16 14mm |
5/8 16mm |
| SK - Skidmore (6 1/8 x 4 1/8) | 6 1/8 156mm |
5 127mm |
2.47 63mm |
4.13 105mm |
2.69 68mm |
1.03 26mm |
9/16 14mm |
.72 18mm |
| ST - Sterling (5 x 5) | 5 127mm |
3 3/4 95mm |
1 7/8 48mm |
5 127mm |
3 3/4 95mm |
1 1/8 29mm |
1/2 13mm |
5/8 16mm |
| WI - Weinman (5 x 5) | 5 127mm |
5 1/8 130mm |
2 1/16 53mm |
5 127mm |
4 1/8 95mm |
1 5/16 33mm |
7/16 11mm |
7/16 11mm |
| *C-AH Dimension -Refer to Motor Support Pages for other dimensional data. All Dimensions in Inches |
||||||||
