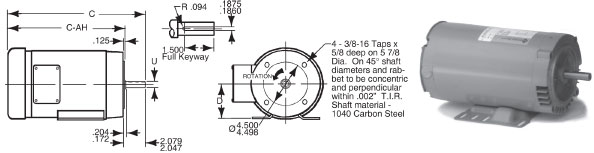

56C Frame C3 Motors
3 Phase - 2 POLE 3450 / 2880 RPM
 |
||||||||||||
| HORSE |
ENCL. |
FRAME |
MTH P/N |
WT. |
DIMENSIONS IN INCHES |
HZ |
SERVICE |
VOLTAGE |
WIRING |
|||
U |
D |
C |
C-AH |
|||||||||
| 1/3 |
ODP |
56C |
FRC-1250-03-ODP |
19 |
5/8 |
35 |
10.7 |
8.76 |
60 |
1.60 |
208-230/460 |
|
| 50 |
1.00 |
190/380 |
||||||||||
| TEFC |
56C |
FRC-1250-03-TEF |
21 |
5/8 |
3.5 |
11.0 |
9.0 |
60 |
1.00 |
208-230/460 |
|
|
| 50 |
1.00 |
190/380 |
||||||||||
| EXP |
56C |
37C-1250-03-EXP |
25 |
5/8 |
3.5 |
10.7 |
8.76 |
60 |
1.0 |
208-230/460 |
|
|
50 |
1.00 |
190/380 |
||||||||||
| 1/2 |
ODP |
56C |
FRC-1250-05-ODP |
19 |
5/8 |
3.5 |
10.7 |
8.76 |
60 |
1.60 |
208-230/460 |
|
| 50 |
1.00 |
190/380 |
||||||||||
| TEFC |
56C |
FRC-1250-05-TEF |
21 |
5/8 |
3.5 |
11.0 |
9.24 |
60 |
1.00 |
208-230/460 |
|
|
| 50 |
1.00 |
190/380 |
||||||||||
| EXP |
56C |
37C-1250-05-EXP |
25 |
5/8 |
3.5 |
12.36 |
10.42 |
60 |
1.00 |
208-230/460 |
|
|
| 50 |
1.00 |
190/380 |
||||||||||
| 3/4 |
ODP |
56C |
FRC-1250-07-ODP |
22 |
5/8 |
3.5 |
10.83 |
8.89 |
60 |
1.50 |
208-230/460 |
|
| 50 |
1.00 |
190/380 |
||||||||||
| TEFC |
56C |
FRC-1250-07-TEF |
23 |
5/8 |
3.5 |
11.49 |
9.55 |
60 |
1.00 |
208-230/460 |
|
|
| 50 |
1.00 |
190/380 |
||||||||||
| EXP |
56C |
37C-1250-07-EXP |
30 |
5/8 |
3.5 |
11.9 |
9.96 |
60 |
1.00 |
208-230/460 |
|
|
| 50 |
1.00 |
190/380 |
||||||||||
| 1 |
ODP |
56C |
FRC-1254-01-ODP |
25 |
5/8 |
3.5 |
10.7 |
8.76 |
60 |
1.40 |
208-230/460 |
|
| 50 |
1.00 |
190/380 |
||||||||||
| TEFC |
56C |
FRC-1254-01-TEF |
27 |
5/8 |
3.5 |
11.24 |
9.48 |
60 |
1.00 |
208-230/460 |
|
|
| 50 |
1.00 |
190/380 |
||||||||||
| EXP |
56C |
37C-1254-01-EXP |
30 |
5/8 |
3.5 |
12.61 |
10.67 |
60 |
1.00 |
208-230/460 |
|
|
| 50 |
1.00 |
190/380 |
||||||||||
| 1 1/2 |
ODP |
56C |
FRC-1254-51-ODP |
29 |
5/8 |
3.5 |
11.83 |
9.89 |
60 |
1.30 |
208-230/460 |
|
| 50 |
1.00 |
190/380 |
||||||||||
| TEFC |
56C |
FRC-1254-51-TEF |
31 |
5/8 |
3.5 |
12.5 |
10.74 |
60 |
1.00 |
208-230/460 |
|
|
| 50 |
1.00 |
190/380 |
||||||||||
| EXP |
56C |
37C-1254-51-EXP |
37 |
5/8 |
3.5 |
14.23 |
12.29 |
60 |
1.00 |
208-230/460 |
|
|
| 50 |
1.00 |
190/380 |
||||||||||
| 2 |
ODP |
56C |
FRC-1254-02-ODP |
35 |
5/8 |
3.5 |
12.08 |
10.5 |
60 |
1.25 |
208-230/460 |
|
| 50 |
1.00 |
190/380 |
||||||||||
| TEFC |
56C |
FRC-1254-02-TEF |
38 |
5/8 |
3.5 |
12.75 |
10.99 |
60 |
1.00 |
208-230/460 |
|
|
| 50 |
1.00 |
190/380 |
||||||||||
| EXP |
56C |
37C-1254-02-EXP |
40 |
5/8 |
3.5 |
12.08 |
10.14 |
60 |
1.00 |
208-230/460 |
|
|
| 50 |
1.00 |
190/380 |
||||||||||
| 3 |
ODP |
56C |
FRC-1254-03-ODP |
41 |
5/8 |
3.5 |
13.29 |
11.38 |
60 |
1.15 |
208-230/460 |
|
| --- |
--- |
--- |
||||||||||
| TEFC |
56C |
FRC-1254-03-TEF |
42 |
5/8 |
3.5 |
13.87 |
12.11 |
60 |
1.00 |
208-230/460 |
|
|
| 50 |
1.00 |
190/380 |
||||||||||
Please consult factory for all 50 Hz operation. Motor Vendor is at the discretion of the factory unless otherwise specified.
Information shown is typical for motor size, consult factory for exact. Consult factory for motor nameplate data.
